LPI System

HOME > PRODUCT > LPI System

The LPI system injects LPG fuel in a liquid state, using injectors at the intake port of the Engine. this provides enhanced power and reduces exhaust fumes by increasing the optimal efficiency and precisely controlling the air-fuel ratio.

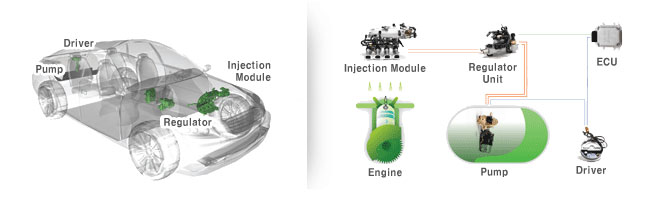

LPI system

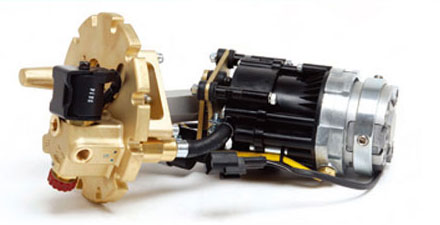

Pump Module

Pump Module

· Type : BLDC Diaphragm
· Max.Flow Rate : 140 l/hr
· Burst Pressure : Over 110 bar
· Reach Time : Under 1.8sec
· Max. Output of Power : 40W

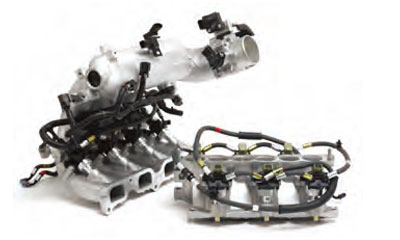

Injection Module

Injection Module

The injection module is composed of an injector and an icing tip.
It distributes and injects LPG fuel through the high-pressure fuel line.

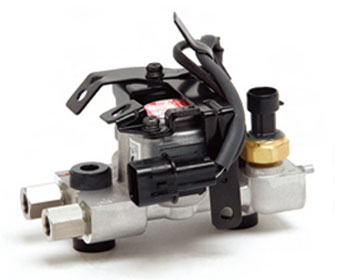

Regulator

Regulator

Maintain LPG fuel at P 5bar
- Pressure and temperature sensor for fuel control
- Cutting off fuel

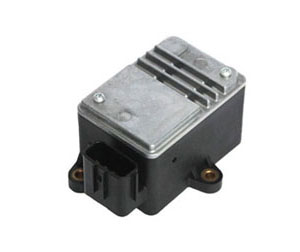

LPI Driver

LPI Driver

A device composed of a PCB board and various electric and electronic devices for driving speed control of a BLDC type electric motor driven fuel pump.
